Cable Assembly, RG-174 50 ½ Coax with SMA plugs and M39029/56-348 Sockets, Length in ft.

SKU:

$ 92.00

Item	Description
88000102-4	Cable, triple voltage, with modular plugs, Length in ft.
88000103-4	Cable, triple voltage, with modular plug and pig tail leads, Length in ft.

Product Description
Diagrams
Applications
Specifications
Documents

These pre-crimped cable assemblies are ready to be inserted into compatible D38999 circular connectors, such as 20FC35SN. We offer pre-populated connector plates, such as 39500002-164-20FC35SN, compatible with our PRL-MRK-3-1 rack-mount kit or 38003105-1 rack-mount panel, to permit rapid integration of multi-channel systems for system distribution, translation, and switching.

Cable assembly 88001600-SMA-M-348-x provides a single coax connection for a single-ended signal, with an SMA-M connector on one end and two M39029/56-348 socket contacts crimped onto the center conductor and shield at the other end, ready for insertion into 2 positions of any compatible D38999 connector.

Insertion of the crimped contacts into the connector housings is simple, and a plastic insertion/removal tool is included with the connector housing. This video from Amphenol demonstrates the process:

which is the same for any standards-compliant D38999-style connector. We have found that lubricating the contacts by dipping them in alcohol makes insertion easier, and in some cases even obviates the need for the insertion tool. The alcohol is non-damaging to either the contact or the housing, and evaporates quickly.

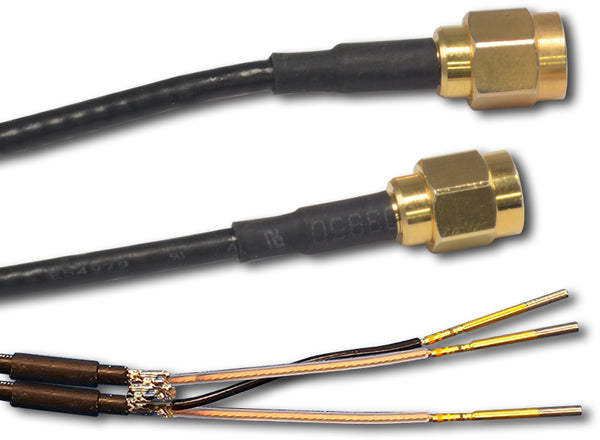

Cable assembly 88001620-SMA-M-348-x provides two coax connections for a differential signal pair, with two SMA-M connectors on one end and three M39029/56-348 socket contacts crimped onto the 2 center conductors and common shield at the other end, ready for insertion into 3 positions of any compatible D38999 connector.
